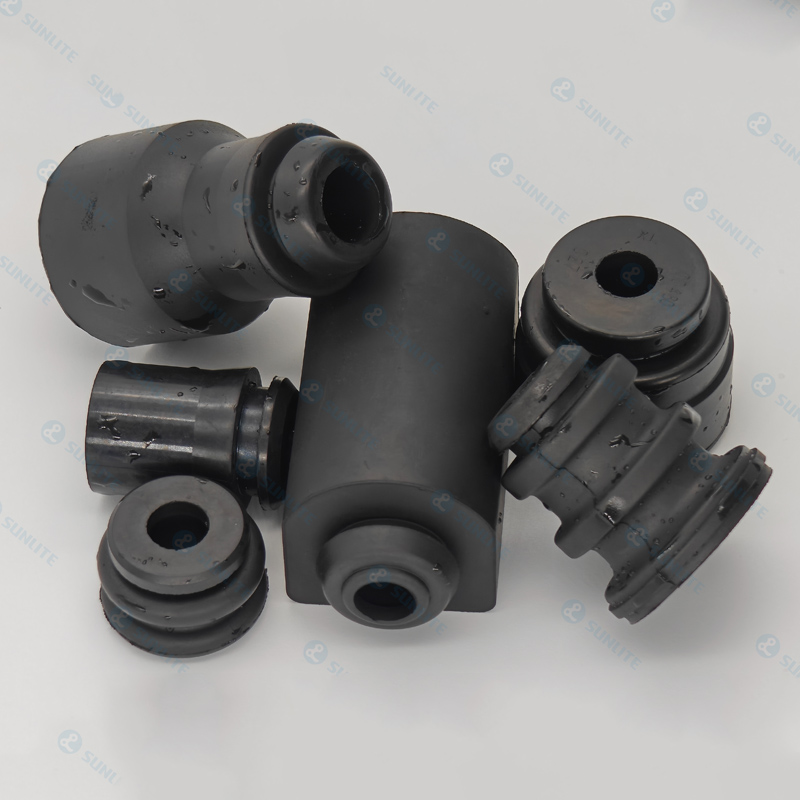

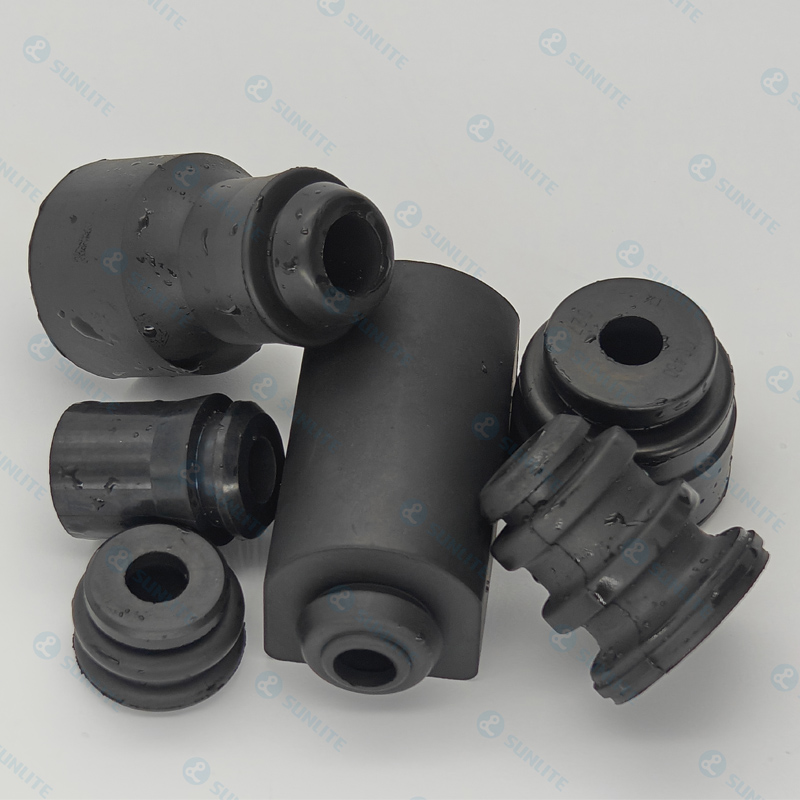

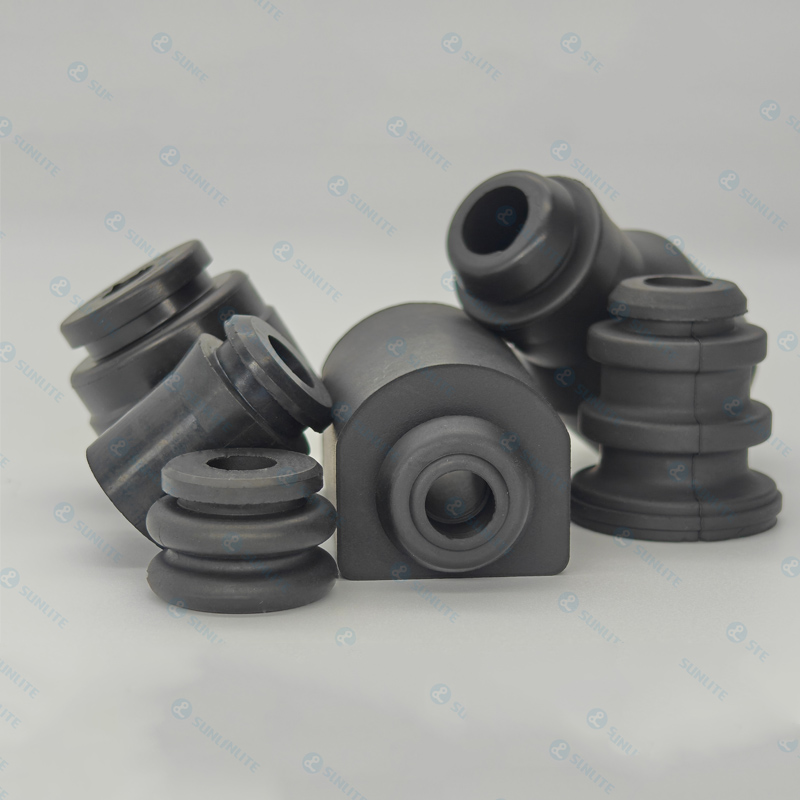

Rubber Vibration Damping Pad

APPLICATION SCENARIOS

1. Base of air conditioner outdoor unit, reducing the transmission of vibration during equipment operation

2. Indoor unit mounting bracket, absorbing mechanical vibrations to reduce noise

3. Fixing of fan motor, preventing structural damage caused by vibration

4. Compressor installation position, buffering impacts to extend service life

Product Description

This product is a metal-rubber integrated flexible coupling component, with high-elasticity NBR (nitrile butadiene rubber) as the main material. It adopts a thermal bonding process to firmly combine the rubber elastomer with aluminum alloy structural parts. It features excellent flexible buffering, vibration suppression and torque transmission functions, making it the preferred choice for flexible connection solutions in various fans, motors and precision equipment.

PRODUCT FUNCTION

High-elasticity vibration absorption: NBR has a high elastic modulus, which can absorb impact loads and dynamic torque, reducing the risk of system resonance;

Transmission noise reduction: Effectively convert vibration energy into thermal energy, reduce high-frequency noise, and enhance the silent operation of equipment;

Dynamic balance assurance: Particularly suitable for fan blades and rotating shaft systems, maintaining stable high-speed operation and avoiding asymmetric wear;

Excellent durability and oil resistance: The rubber has excellent oil resistance (to lubricating oil, fuel oil) and fatigue resistance, extending service life;

Adaptability to complex working conditions: Operating temperature range from -40℃ to +120℃, suitable for scenarios with high temperature, high load, and high-frequency vibration.

PERFORMANCE INDEX

Core material: NBR (nitrile butadiene rubber), supplemented with a CR bonding layer

Accessory structure: Thermal bonding molding / aluminum alloy inserts

High elastic modulus: With excellent energy buffering capacity

Operating temperature: -40℃ ～ 120℃

Oil resistance: Resistant to industrial media such as fuel oil, hydraulic oil, and lubricating oil

Fatigue life: ≥1,000,000 cycles under dynamic high-frequency load conditions

APPLICATION AREA

Industrial fans: Used for flexible connection between motors and fan blades, enhancing stability and safety;

Air conditioning compressor systems: Buffer rotor impact and extend the service life of mechanical components;

CNC equipment and precision motors: Absorb impact loads during rapid start-stop to ensure positioning accuracy;

Agricultural equipment and power tools: Provide vibration damping and noise reduction, enhancing operational comfort and structural protection performance.
